LED Light Ready For Hacking
January 18, 2013 — 20:35

I bought one of these in Argos to see if there was anything interesting that could be one with it. It turns out that the thing is ripe for hacking if you wanted.

argos

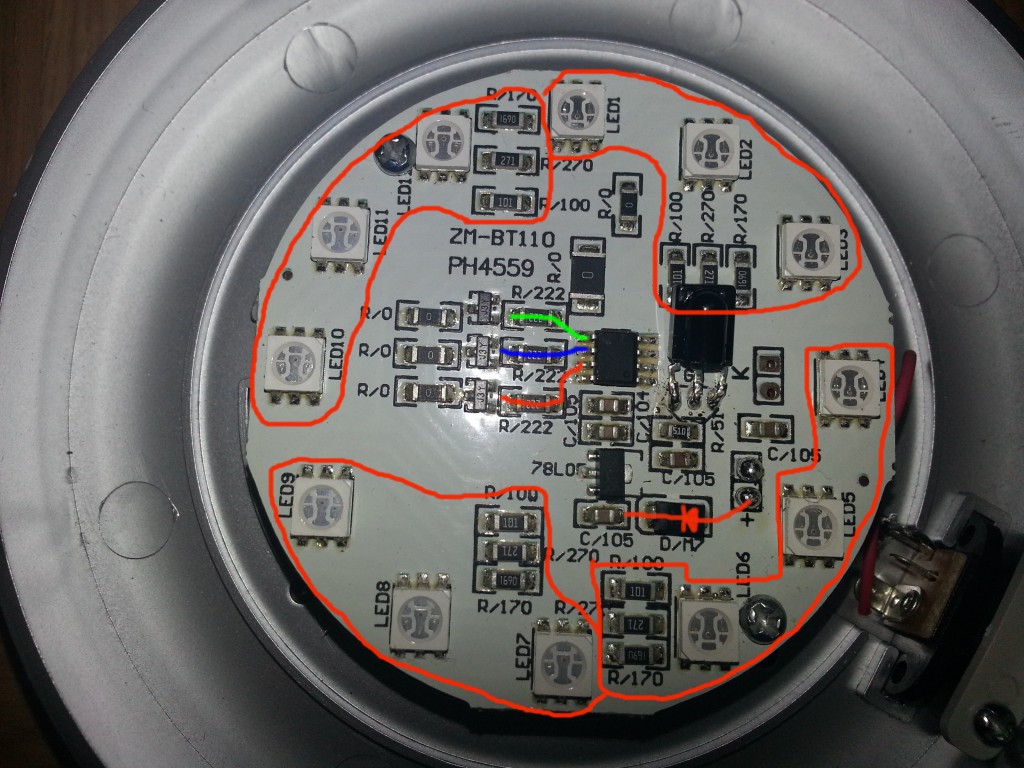

Inside theres a single sided PCB with 12 SMD RGB LED’s on. The LED’s are grouped into four groups of three LED’s in series. Each group using its own set of resistors for each colour. The 12v input passes through a diode to protect against reverse polarity. A 7805 regulator is used to provide the 5v needed for the IR receiver and the unmarked 8 pin control IC. The PWM output from the controller for each colour passes through a 2k2 resistor into a sot-23 J3Y NPN transistor which controls the 12V supply to the LED’s

led groupings led pinout





The pinout for the IC is below, the unused pin is tied to GND so i’m not sure which is the actual ground pin. If anyone has any idea what the IC is let me know.

ic

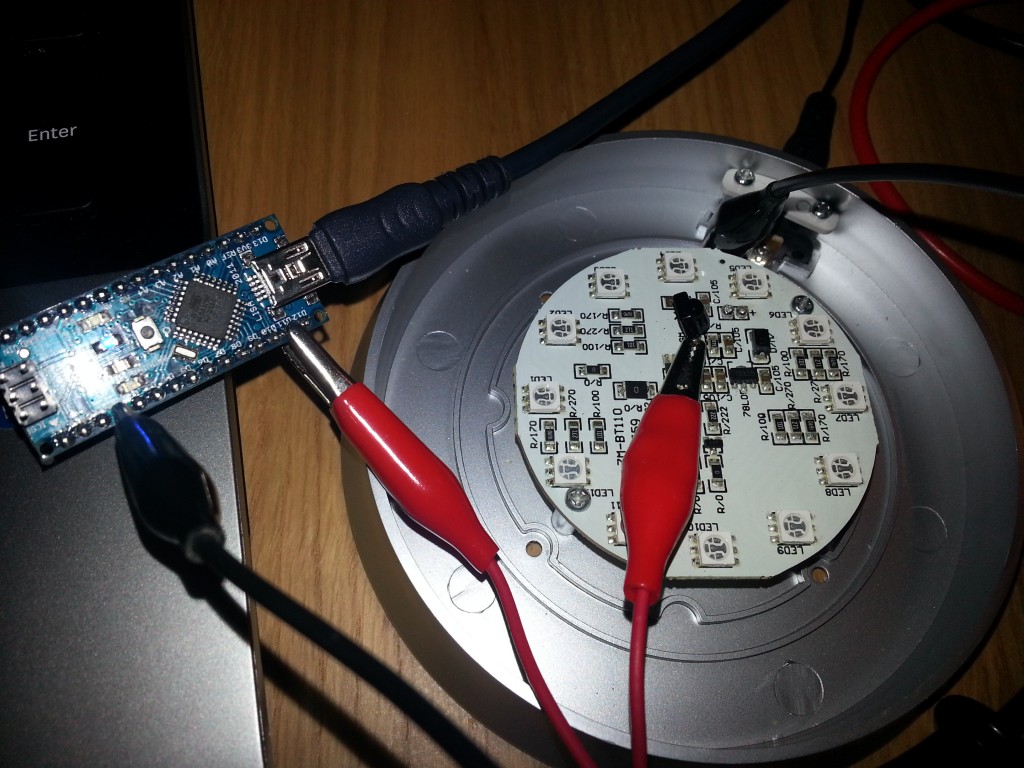

To read the IR codes it used an arduino with Ken Shirriffs IR library connected to the output of the IR receiver.



2013-01-18 15.12.08



The remote used the NEC protocol which is very common for these cheapo slim remote controls.

2013-01-18 19.24.57

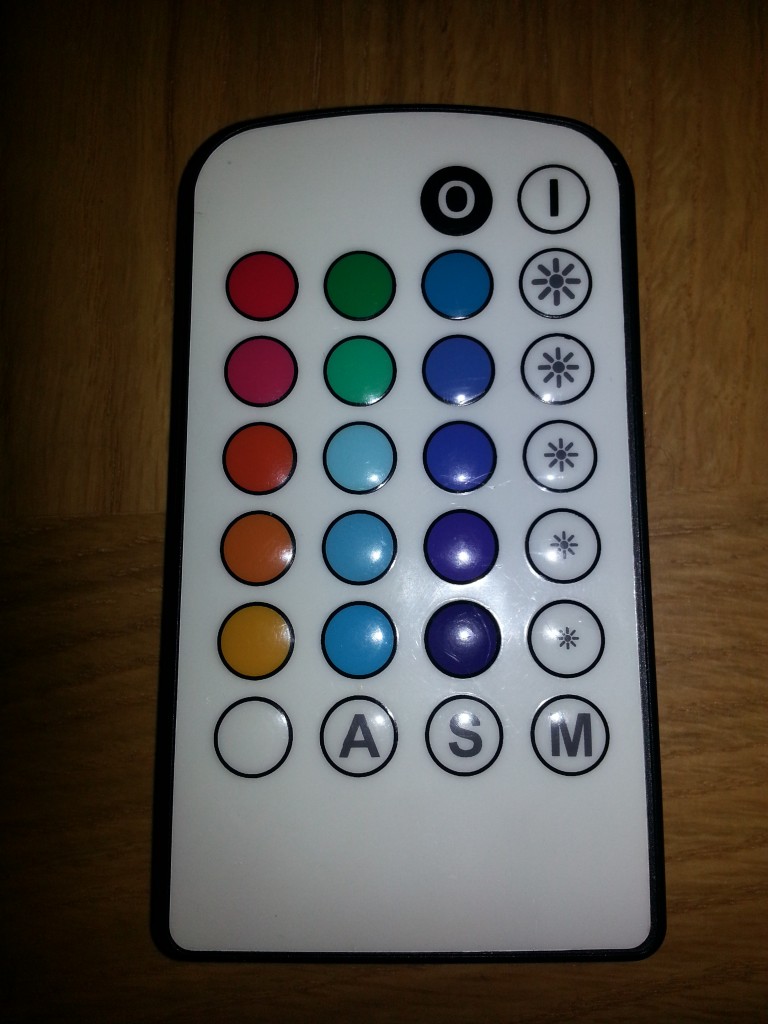

The codes are in the table below, matching the layout of the remote itself.

ircodes



So far i haven’t done anything further with it as i haven’t decided what to do. The easiest way to add control to it is to use the remote codes that we now know and send them with an arduino or similar. I think what i will probably do is replace the existing IC with an attiny85, the pinout is different but you can solder wires to the pads and put the attiny elsewhere. To keep the existing IR remote the arduino library would need modifying to work with the attiny and to match the functions it would be necessary to put an oscilloscope of the output pins and measure the PWN duty cycle to get the same colours. With the unused pin you could add bluetooth and/or USB serial control easily.

I’ll post if i ever decide what to do with it!
